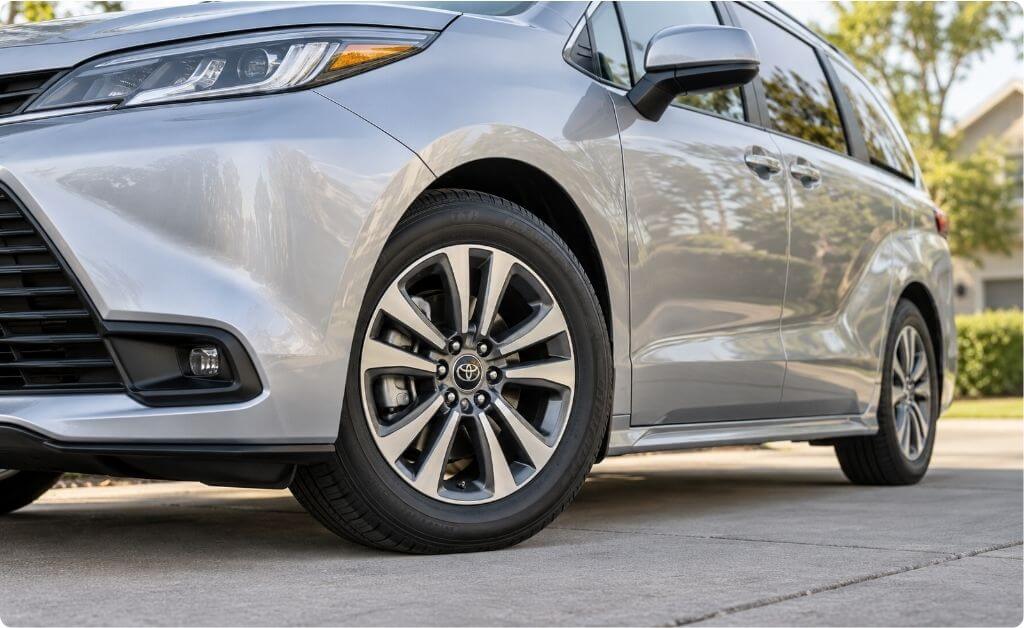

Toyota Sienna Bolt Pattern by Year (1998–2026)
The Toyota Sienna bolt pattern is 5×114.3 mm (5×4.5 inches) for US-market models from 1998 through 2026. Use the chart below to find your model year before shopping for replacement wheels or a second set for winter tires.
Matching the bolt pattern is the first fitment check. The wheel’s center bore, width, offset, brake clearance, load capacity, and lug-nut seat must also suit your Sienna.
Quick Answer
Toyota Sienna models covered in this guide use a 5×114.3 mm bolt pattern, also written as 5×4.5 inches. This means five wheel studs arranged on a circle measuring 114.3 mm across. A matching bolt pattern alone does not guarantee that a replacement wheel will fit correctly.
Toyota Sienna Bolt Pattern Chart: 1998–2026
Use your vehicle’s model year, which may differ from its purchase or registration year.
| Model year | Generation | Bolt pattern (mm) | Bolt pattern (inches) |
|---|---|---|---|
| 1998 | First | 5×114.3 | 5×4.5 |
| 1999 | First | 5×114.3 | 5×4.5 |
| 2000 | First | 5×114.3 | 5×4.5 |
| 2001 | First | 5×114.3 | 5×4.5 |
| 2002 | First | 5×114.3 | 5×4.5 |
| 2003 | First | 5×114.3 | 5×4.5 |
| 2004 | Second | 5×114.3 | 5×4.5 |
| 2005 | Second | 5×114.3 | 5×4.5 |
| 2006 | Second | 5×114.3 | 5×4.5 |
| 2007 | Second | 5×114.3 | 5×4.5 |
| 2008 | Second | 5×114.3 | 5×4.5 |
| 2009 | Second | 5×114.3 | 5×4.5 |
| 2010 | Second | 5×114.3 | 5×4.5 |
| 2011 | Third | 5×114.3 | 5×4.5 |
| 2012 | Third | 5×114.3 | 5×4.5 |
| 2013 | Third | 5×114.3 | 5×4.5 |
| 2014 | Third | 5×114.3 | 5×4.5 |
| 2015 | Third | 5×114.3 | 5×4.5 |
| 2016 | Third | 5×114.3 | 5×4.5 |
| 2017 | Third | 5×114.3 | 5×4.5 |
| 2018 | Third | 5×114.3 | 5×4.5 |
| 2019 | Third | 5×114.3 | 5×4.5 |
| 2020 | Third | 5×114.3 | 5×4.5 |
| 2021 | Fourth | 5×114.3 | 5×4.5 |
| 2022 | Fourth | 5×114.3 | 5×4.5 |
| 2023 | Fourth | 5×114.3 | 5×4.5 |
| 2024 | Fourth | 5×114.3 | 5×4.5 |
| 2025 | Fourth | 5×114.3 | 5×4.5 |
| 2026 | Fourth | 5×114.3 | 5×4.5 |
Application: US-market vehicles with their original factory hub configuration. Modified hubs and bolt-pattern adapters require separate verification.
What Does 5×114.3 Mean?
A bolt pattern describes the number and arrangement of a wheel’s mounting holes:
- 5 means five lug holes, matching the vehicle’s five wheel studs.
- 114.3 is the diameter, in millimeters, of the imaginary circle passing through the centers of those holes.
This measurement is called the pitch circle diameter (PCD). It does not describe the wheel’s overall diameter or the distance between neighboring studs.
Is 5×114.3 the Same as 5×4.5?
Yes. They are exactly equivalent:
4.5 inches × 25.4 = 114.3 mm
Wheel listings may write this as 5×114.3, 5×4.5, or 5 on 4.5.
Why Five Lug Holes Alone Are Not Enough
Patterns such as 5×100 and 5×120 also have five holes, but their bolt circles differ. Both the hole count and bolt-circle diameter must match.
No two holes on a five-lug wheel sit directly opposite each other. A straight measurement between two hole centers therefore does not give the full PCD. Check the wheel manufacturer’s specifications or use a suitable gauge; our guide to measuring wheel bolt patterns explains the measurement process.
Will Wheels From Another Toyota Sienna Year Fit?
They may, but the donor vehicle’s name and bolt pattern do not establish compatibility. Check the specific wheel against the receiving vehicle’s requirements.
What to Check Before Swapping Wheels
| Check | What to confirm |
|---|---|
| Center bore | The wheel’s center opening and centering requirements suit the hub and the wheel manufacturer’s installation instructions. |
| Diameter and brake clearance | The barrel and spokes clear the brake assembly; wheel diameter alone does not establish clearance. |
| Width and offset | The wheel and tire have appropriate suspension and fender clearance. |
| Load capacity | The wheel is rated for the receiving vehicle’s application. |
| Lug nuts | Thread, seat design, and thread engagement suit the studs and wheel. |
| Included tires | Size, load rating, and wheel compatibility suit your Sienna. |
| Included TPMS sensors | Sensors are compatible with the receiving vehicle and can be registered as required. |
Width and offset need to be considered together. Our wheel offset chart explains how these measurements affect the wheel’s inward and outward position.
If tires come with the wheels, use our Toyota Sienna tire size to compare nominal dimensions, then confirm the exact tire specification against your vehicle’s requirements.
For used wheels, have a qualified installer inspect for cracks, bends, damage around the mounting holes, and questionable repairs before installation.
A Used-Wheel Example
Suppose a seller offers wheels removed from a 2015 Sienna for your 2025 model. This is a fitment-check example, not confirmation that those wheels are interchangeable.
Ask for the Toyota wheel part number or aftermarket make and exact product code, plus photos of the size and offset markings. Give that information and your VIN to a Toyota parts department or qualified wheel supplier to verify the application.
How to Confirm Your Sienna’s Wheel Fitment
1. Identify Your Vehicle
Gather the model year, trim, drivetrain, and VIN. A Toyota parts department can use the VIN to help identify the original vehicle specification.
The driver’s door-jamb tire label provides tire-size and cold-pressure information. It is not a complete wheel specification record and does not establish bolt pattern or offset.
2. Identify the Exact Wheel
For a Toyota factory wheel, obtain the part number. For an aftermarket wheel, request its manufacturer, model, size, and exact product code.
A description such as “18-inch Toyota wheel” leaves out the information needed to check the application. Ask for clear photographs of the markings if you are buying used.
3. Verify the Application and Installation Requirements
Have the supplier confirm the specific wheel for your Sienna using the details above. Check included tires and sensors separately, and establish which mounting hardware the wheel requires.
Once fitment is confirmed, follow the applicable installation instructions. Our Toyota Sienna lug-nut torque guide covers tightening information and its application limits; confirm the specification in your vehicle’s manual before wheel service.
Toyota Sienna Bolt Pattern FAQs
Does the Sienna’s bolt pattern change between generations?
The published fitment records used for this chart list 5×114.3 mm throughout the 1998–2026 range. Other wheel specifications can differ, so the shared pattern does not establish interchangeability across generations.
Will Camry or RAV4 wheels fit a Sienna?
A matching pattern on another Toyota is not enough to approve a swap. Have the exact wheel part number checked for your Sienna, including load capacity, dimensions, brake clearance, and mounting hardware.
Does the tire size tell me the bolt pattern?
No. A tire marking describes the tire’s size and related specifications. It does not identify the wheel’s mounting-hole arrangement.
Before You Buy
Use the year chart to identify your Sienna’s bolt pattern, then verify the exact replacement wheel. A part number, clear wheel markings, and your vehicle’s VIN make that check more useful than a general “fits Toyota” listing.
