Tire Load Rating Chart

Tire Load Rating Chart: Load Index Capacity in lb & kg

Last updated on November 20th, 2026

A tire load rating chart shows the maximum rated weight associated with a tire’s numeric load index. Find the number beside the speed symbol on the sidewall, then use the chart below to look up its capacity in kilograms and pounds.

The values apply to one tire under specified service conditions. When selecting replacements, also check your vehicle’s tire requirements and the replacement tire’s capacity at the appropriate cold inflation pressure.

Quick Answer: A tire’s load index is a numerical code for its maximum rated load. For example, 91 means 615 kg—approximately 1,356 lb—per tire under specified conditions. Load-range letters such as C, D, and E describe a different classification. Neither the index nor the letter alone tells you what pressure to use or how much payload your vehicle can carry.

Tire Load Rating Chart: Load Index 0–150

Use this tire load index chart to match the numeric index on your tire with its rated capacity. Each row refers to one tire, not an axle, a dual-tire pair, or the whole vehicle.

This chart covers indices 0–150. The load index system extends beyond the range shown. Pound values are approximate conversions rounded to the nearest whole pound.

Load indexRated capacity per tire (kg)Approx. capacity per tire (lb)
04599
146.2102
247.5105
348.7107
450110
551.5114
653117
754.5120
856123
958128
1060132
1161.5136
1263139
1365143
1467148
1569152
1671157
1773161
1875165
1977.5171
2080176
2182.5182
2285187
2387.5193
2490198
2592.5204
2695209
2797.5215
28100220
29103227
30106234
31109240
32112247
33115254
34118260
35121267
36125276
37128282
38132291
39136300
40140309
41145320
42150331
43155342
44160353
45165364
46170375
47175386
48180397
49185408
50190419
51195430
52200441
53206454
54212467
55218481
56224494
57230507
58236520
59243536
60250551
61257567
62265584
63272600
64280617
65290639
66300661
67307677
68315694
69325717
70335739
71345761
72355783
73365805
74375827
75387853
76400882
77412908
78425937
79437963
80450992
814621,019
824751,047
834871,074
845001,102
855151,135
865301,168
875451,202
885601,235
895801,279
906001,323
916151,356
926301,389
936501,433
946701,477
956901,521
967101,565
977301,609
987501,653
997751,709
1008001,764
1018251,819
1028501,874
1038751,929
1049001,984
1059252,039
1069502,094
1079752,150
1081,0002,205
1091,0302,271
1101,0602,337
1111,0902,403
1121,1202,469
1131,1502,535
1141,1802,601
1151,2152,679
1161,2502,756
1171,2852,833
1181,3202,910
1191,3602,998
1201,4003,086
1211,4503,197
1221,5003,307
1231,5503,417
1241,6003,527
1251,6503,638
1261,7003,748
1271,7503,858
1281,8003,968
1291,8504,079
1301,9004,189
1311,9504,299
1322,0004,409
1332,0604,542
1342,1204,674
1352,1804,806
1362,2404,938
1372,3005,071
1382,3605,203
1392,4305,357
1402,5005,512
1412,5755,677
1422,6505,842
1432,7256,008
1442,8006,173
1452,9006,393
1463,0006,614
1473,0756,779
1483,1506,945
1493,2507,165
1503,3507,385

Chart note: These are rated capacities under specified service conditions, not capacities available at every inflation pressure. For capacity at a particular cold pressure, use the tire manufacturer’s applicable load–inflation table. Adding tire capacities does not establish your vehicle’s payload, towing capacity, or allowable axle weight.

How to Read the Load Rating on a Tire

Look for the service description on the tire sidewall—the load index followed by the speed symbol. In 205/55R16 91V, the load index is 91.

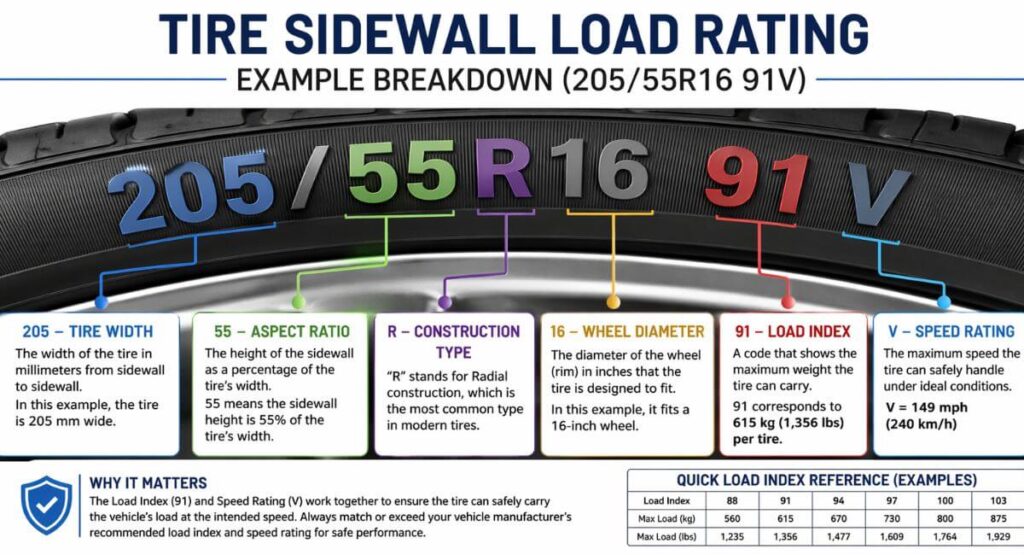

205/55R16 91V tire marking with load index 91 and speed symbol V identified
Sidewall markingMeaning
205Nominal section width in millimeters
55Aspect ratio: nominal sidewall height as a percentage of section width
RRadial construction
16Wheel diameter in inches
91Load index: 615 kg, approximately 1,356 lb, per tire
VSpeed symbol, separate from the load index

The index is a code, not a weight measurement. 91 does not mean 91 kg or 91 lb. Find that number in the chart to identify its rated-capacity reference.

A sidewall can contain several other numbers, so do not confuse the load index with tire width, wheel diameter, or the manufacturing date code.

Maximum Load and Pressure Markings

Elsewhere on the sidewall, you may find maximum-load and cold-inflation information. Some truck tires show separate load values for single and dual applications.

Read the full marking rather than treating the largest visible number as the vehicle’s recommended pressure. Maximum-load information describes the tire; the vehicle’s placard and owner’s manual provide guidance for the approved tire setup.

If the service description contains two indices separated by a slash, use the single/dual explanation below before selecting a capacity.

What Load Index Do You Need?

Start with the vehicle manufacturer’s tire requirements. The correct replacement must provide the required load capacity at the appropriate cold inflation pressure—not simply display a higher index.

Your tire placard usually lists the original tire sizes and recommended cold pressures. Check the owner’s manual, approved fitment information, or vehicle manufacturer’s guidance for additional load-index and tire-type requirements.

Replacement Tire Checklist

CheckWhat to confirm
Vehicle requirementsRecommended size, load capacity, tire type, and speed specification
Replacement specificationCorrect size and required designations, including XL or load range where applicable
Capacity at the intended pressureSufficient capacity according to applicable manufacturer load–inflation data
Wheel compatibilityApproved rim dimensions and adequate wheel load and pressure ratings
Vehicle limitsLoaded vehicle and axle weights remain within their specified limits

Do not choose a replacement with less load-carrying capacity than required for the vehicle. If you change tire size, switch between passenger and LT tires, or change the load designation, have the replacement capacity and pressure requirements checked.

Can You Choose a Higher Load Index?

A higher load index can be acceptable when the complete tire specification meets the vehicle manufacturer’s requirements. The index alone does not confirm suitability at the pressure your vehicle uses.

For example, moving from index 91 to index 94 changes the chart reference from 615 kg to 670 kg per tire. You must still confirm the size, tire type, speed specification, wheel compatibility, and capacity at the appropriate pressure.

This change does not increase the vehicle’s payload, axle ratings, or towing limit.

Related Topic: Tire Tread Depth Chart

Check XL and LT Requirements

If your vehicle requires XL—Extra Load—tires, retain that requirement unless the vehicle manufacturer approves an alternative. Matching dimensions alone does not establish that a Standard Load tire is an equivalent replacement.

Changing from passenger tires to LT—Light Truck—tires can require a different inflation pressure to provide equivalent capacity. Do not automatically carry over the previous tire pressure.

Passenger tires used in a light-truck application can also require a capacity adjustment. USTMA guidance specifies dividing passenger-tire capacity by 1.10 for that application. This is not a universal adjustment for every tire type; use the applicable manufacturer guidance when assessing the fitment.

Load Index vs. Load Range

Load index identifies a rated-capacity reference; load range identifies a load and inflation classification. They describe related specifications, but they are not interchangeable.

SpecificationExampleWhat it tells you
Load index91, 100, or 120/116Numeric reference to maximum rated load under specified conditions
Load rangeC, D, or ELoad and inflation classification used on applicable tires
Passenger load designationSL or XLStandard Load or Extra Load classification
Maximum-load markingLoad stated in kg and lbThe specific tire’s marked maximum capacity, with applicable conditions

Load index appears on passenger tires and many truck tires. A truck tire can display both a numeric index and a load-range letter, so these systems should not be divided into “numbers for cars” and “letters for trucks.”

Does Load Range E Always Carry More Than Load Range D?

Not across different sizes and specifications. A larger D-rated tire can have a higher maximum capacity than a smaller E-rated tire.

Compare the exact specifications and capacities at the intended pressure. There is no universal conversion from Load Range E to one load-index number or one pounds-per-tire limit.

Is Load Range the Same as Ply Rating?

Load-range letters are associated with historical ply-rating equivalents. For example, Load Range E is commonly described as 10-ply rated. This does not necessarily mean the tire contains ten physical plies.

A ply-rating label alone does not establish the tire’s actual construction, puncture resistance, or suitability for your vehicle.

For the detailed letters and pressure qualifications, use our truck tire load range chart. Motorhome and travel-trailer owners can consult the application guidance in our RV tire load range chart.

How Tire Pressure Affects Load Capacity

The load index provides a maximum rated-capacity reference. It does not show how much weight the tire supports at every inflation pressure.

For capacity at a particular pressure, consult the applicable load–inflation table. Do not assume a tire inflated below its rated-load pressure still provides the full capacity shown in the index chart.

Adding pressure above the pressure associated with maximum rated load does not automatically increase the tire’s allowable capacity.

Three Pressure Figures to Understand

Pressure figureMeaningHow to use it
Vehicle-recommended cold pressurePressure specified for the vehicle’s approved tire setup and operating conditionsFollow the tire placard and owner’s manual
Pressure associated with maximum rated loadReference pressure used to establish maximum loadConsult the applicable specification or load–inflation table
Maximum cold inflation pressureMaximum cold pressure permitted for the tireTreat it as a tire limit, not an automatic everyday recommendation

These figures are not always identical. For example, some P-metric Standard Load tires reach their maximum rated load at 35 PSI, while their sidewalls permit a higher maximum cold pressure.

That extra pressure allowance does not establish a higher maximum load rating. This is a specification example—not a recommendation to inflate every Standard Load tire to 35 PSI.

Which Pressure Should You Use?

For the original or an approved equivalent tire setup, follow the vehicle manufacturer’s recommended cold pressures. Check whether the owner’s manual specifies different settings for heavier loads or particular operating conditions.

Cold-pressure checks should be made before driving has warmed the tires, following the vehicle or tire manufacturer’s instructions. Do not bleed air from a warm tire simply to bring its reading down to the recommended cold setting.

If tire size or type changes, confirm the replacement’s required pressure rather than choosing a value from the load index alone. Stay within the applicable tire and wheel limits.

If the required capacity cannot be achieved within those limits, adding more pressure is not a solution—the fitment needs to be reassessed.

Why There Is No Universal PSI-to-Capacity Chart

A rule such as “30 PSI provides 90% of rated capacity” cannot be applied to every tire. The relevant relationship depends on tire size, type, specification, and applicable load–inflation data.

Use the exact manufacturer table rather than estimating capacity from a generic percentage. Select single or dual values as appropriate for the tire’s installation.

Single vs. Dual Tire Load Ratings

Some tires approved for single and dual applications have two indices separated by a slash, such as 120/116S.

A single application has one tire at each axle end. A dual application has two tires mounted together at each axle end.

120/116S marking showing single and dual load ratings per tire
MarkingMeaningRated capacity per tire
120Single application1,400 kg / approximately 3,086 lb
116Dual application1,250 kg / approximately 2,756 lb
SSpeed symbolSeparate from load capacity

For a tire mounted in a dual assembly, use the second index for each tire. The dual value is not the capacity of the entire pair.

In this example, 1,250 kg applies to each tire in the dual application under the relevant conditions. The first index must not be substituted simply because it gives a larger number.

Confirm the tire’s approval for dual mounting, applicable pressure, matching requirements, and wheel configuration in the manufacturer’s technical information. Two tires placed together do not automatically form an approved dual installation.

Can You Multiply Tire Capacity by Four?

You can add four tire capacities, but the result is not your vehicle’s payload or maximum allowable weight. It also does not establish how much each tire supports at the pressure you use.

For example, four tires with a load index of 91 have a combined chart capacity of:

615 kg × 4 = 2,460 kg.

That arithmetic adds four maximum rated-capacity references. It does not account for operating pressure, unequal weight distribution, or the vehicle’s own limits.

Tire Capacity vs. Vehicle Weight Limits

TermWhat it means
Tire load capacityWeight an individual tire is rated to support under specified conditions
GVWR—Gross Vehicle Weight RatingMaximum permitted loaded vehicle weight specified by the manufacturer
GAWR—Gross Axle Weight RatingMaximum permitted weight on a particular axle
PayloadAllowance for occupants and cargo, subject to the vehicle’s specifications and equipment

A vehicle can remain below its GVWR while exceeding a rear axle limit. Weight can also be distributed unevenly between the left and right sides.

Dividing an axle’s measured weight by its tire count gives an average; it does not reveal the load on every tire. More detailed measurements can be important for heavily loaded applications, especially motorhomes.

For towing, trailer tongue or pin weight adds load to the tow vehicle and affects axle loading. Higher-capacity tires do not raise the manufacturer’s towing limit.

Practical check: Compare loaded vehicle and axle weights with the manufacturer’s limits. Where appropriate, obtain individual wheel-position weights and verify capacity using the applicable tire guidance.

Common Load-Rating Mistakes

MistakeWhat to do instead
Reading the index as a weightLook up the code: index 91 means 615 kg under specified conditions, not 91 kg
Assuming chart capacity applies at any pressureCheck the applicable load–inflation table
Converting a load-range letter directly into poundsCompare the exact tire specification and manufacturer data
Choosing a replacement by index aloneConfirm size, type, required designations, speed specification, pressure, and wheel compatibility
Using the single rating for dual-mounted tiresUse the dual rating for each tire in the assembly
Adding tire capacities to determine payload or towing capacityCheck vehicle, axle, and individual tire limits separately

A higher number or letter is not a substitute for checking the complete fitment. The correct tire must meet the vehicle’s requirements and provide sufficient capacity at the appropriate cold pressure.

Frequently Asked Questions

What Does Load Index 91 Mean?

Load index 91 corresponds to 615 kg—approximately 1,356 lb—per tire under specified conditions. It does not establish capacity at every pressure or the vehicle’s payload limit.

Is Tire Load Rating the Same as Load Index?

“Load rating” is a broad term for a tire’s load-carrying capability. The load index is the numeric code used to look up a rated capacity. A load-range letter describes a different classification.

Can I Use a Tire With a Higher Load Index?

A higher-index tire may be suitable if its complete specification meets the vehicle manufacturer’s requirements. Confirm capacity at the appropriate pressure, along with size, tire type, speed specification, and wheel compatibility.

Can I Replace XL Tires With Standard Load Tires?

If your vehicle specifies XL tires, retain that requirement unless the vehicle manufacturer approves an alternative. Matching dimensions alone does not confirm an equivalent replacement.

Does Load Range E Always Carry More Weight Than Load Range D?

No. Across different sizes and specifications, a D-rated tire can have a higher capacity than an E-rated tire. Compare the exact manufacturer data and capacity at the intended pressure.

Does a Higher Tire Load Rating Increase Towing Capacity?

No. Higher-rated tires do not raise the vehicle’s towing limit, GVWR, or axle ratings. Every relevant vehicle and component limit still applies.

Is Load Index 100 the Same as 100 Pounds?

No. Load index 100 corresponds to 800 kg—approximately 1,764 lb—per tire under specified conditions. The index is a standardized code, not a direct weight measurement.

What If My Tire’s Load Index Is Above 150?

Use the tire manufacturer’s technical reference or a load-index chart covering that number. Do not extrapolate from this table: index values are assigned references, and this chart stops at 150.

Sources and Chart Method

This chart covers load indices 0–150. Kilogram values were checked using UNECE load-index references and manufacturer tables from Continental, Roadstone, and Toyo.

Annex 4 of UNECE Regulation No. 108 provides an index-to-capacity reference. It is used here for numeric values, not as replacement-tire approval for a particular vehicle.

Pounds are calculated using 1 lb = 0.45359237 kg and rounded to the nearest whole pound. Published manufacturer tables and sidewalls may use different rounding. Follow the specific tire’s markings and technical information when confirming its allowable load.

Replacement and loading guidance follows the principles in the USTMA Care and Service Guide for Passenger and Light Truck Tires.

This chart is a numeric lookup reference. It does not calculate capacity at a selected pressure, determine vehicle payload, or approve a tire fitment.

Conclusion

Use the tire load rating chart to identify the capacity associated with your tire’s numeric load index. Then confirm the complete specification and appropriate cold pressure against your vehicle manufacturer’s requirements.

For replacements, check capacity at the intended pressure and respect the vehicle’s axle, gross weight, and towing limits. A higher load index or load-range letter does not increase those limits.
